Views: 0 Author: Site Editor Publish Time: 2026-10-30 Origin: Site
Woodworking glue-ups are high-stakes events. Time is constantly working against you, and shifting parts can easily ruin hours of careful milling. You only have a few precious minutes before the adhesive begins to tack up. During this critical window, incorrect clamp sizing often leads to failed joints or severely blown tool budgets. Many woodworkers fall into the common trap of buying clamps far too short for large casework. Conversely, they often choose models completely oversized and unwieldy for delicate panel glue-ups.
This comprehensive guide provides a definitive evaluation framework to help you navigate these frustrating scenarios. We will explore how to select the exact F-clamp size for woodworking based on your specific project requirements. You will learn to properly evaluate dimensions like capacity and throat depth against the realities of clamping pressure.

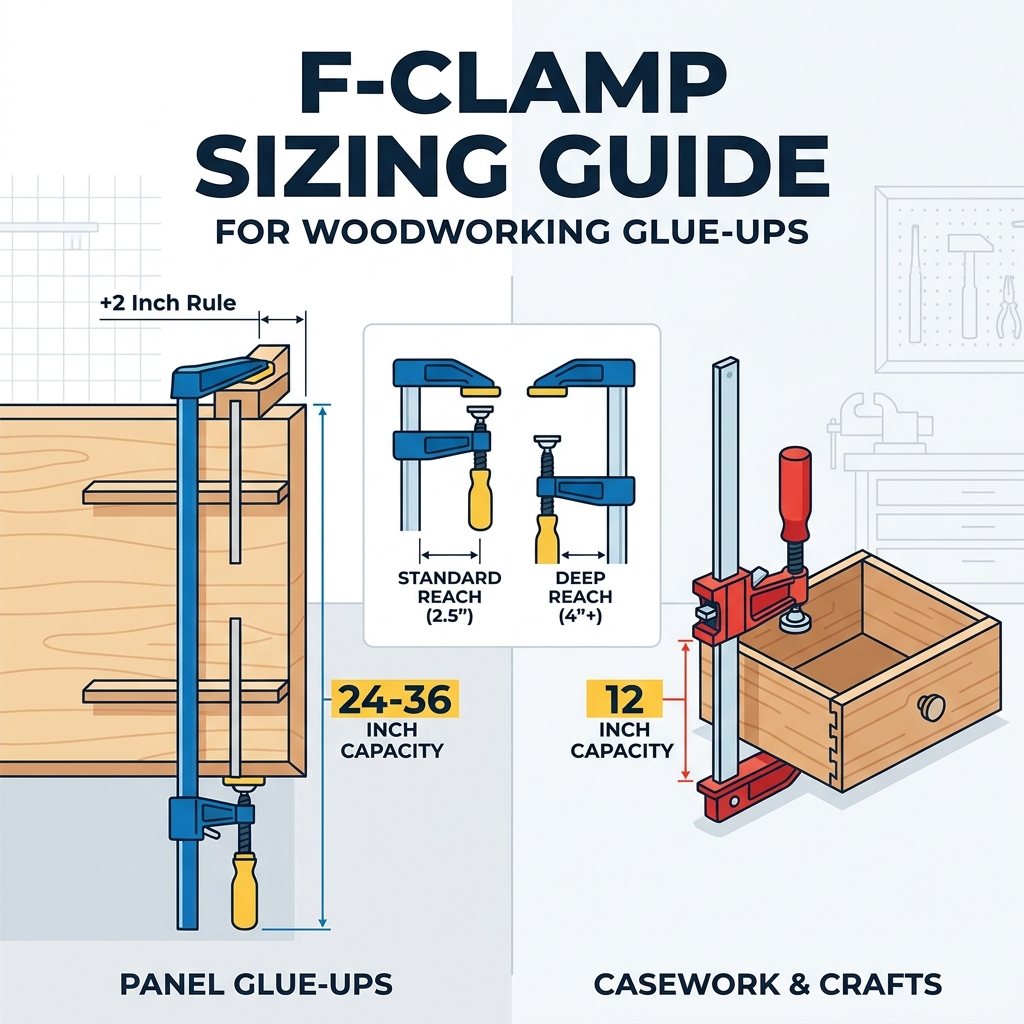

The "+2 Inch" Rule: Optimal clamp length should exceed your maximum workpiece width by at least two inches to accommodate clamping cauls and angled engagement.
Throat Depth Dictates Use: Standard 2.5-inch throats are ideal for edge-gluing, while deeper 4-to-5-inch throats are necessary for reaching over obstacles and applying center pressure.
Style Impacts Pressure: A quick acting F clamp offers vital speed during complex assemblies, but traditional threaded screw F-clamps are required to achieve the high PSI needed for closing stubborn joints.
Deflection is Real: The deeper the throat and longer the bar on an F-clamp, the higher the risk of bar deflection and uneven joint pressure.
You cannot build a functional clamp collection without understanding basic anatomy. Woodworking clamps rely on two primary measurements. These dimensions dictate how and where you can use them effectively.
Capacity refers to the maximum usable opening of the clamp jaws. It represents the thickest piece of material the tool can hold. Many beginners confuse this with the total length of the steel bar. A "12-inch clamp" provides a 12-inch maximum opening. The actual steel bar is usually several inches longer to accommodate the sliding jaw mechanism. Always size your capacity based on the opening, not the overall physical footprint of the tool.
Throat depth measures the distance from the inside edge of the steel bar to the center of the clamping pad. This dimension determines how far into a panel you can apply pressure. Standard throats hover around 2.5 inches. Deep throats extend to 4 or even 5 inches. The throat depth changes the physics of your clamping operation entirely.
You must balance bar thickness, throat depth, and pressure rating. We measure this pressure in pounds per square inch (PSI). There is a significant structural trade-off here. Light-duty clamps featuring deep throats will inevitably bow under heavy tension. The long throat acts as a lever against the thin steel bar. When the bar deflects, the jaw pads angle inward. This uneven pressure compromises the glue line. If you need a deep reach, you must buy heavier clamps featuring thicker, reinforced steel bars.
Shop projects vary wildly in scale. You cannot use the same clamping strategy for a massive dining table and a delicate jewelry box. You must categorize your projects to select the appropriate tools.
Creating wide panels requires spanning significant distances. You are gluing multiple boards edge-to-edge.
Ideal Sizes: 24-inch to 36-inch capacities.
Success Criteria: Your clamps must span the entire width of the glued boards. They must also leave enough room for protective cauls. Cauls are scrap wood pieces placed between the clamp pad and your project. They prevent ugly indentations. A 24-inch panel requires at least a 26-inch clamp to accommodate these protective blocks.
Cabinets and drawers involve intersecting corners and tight interior spaces. Maneuverability becomes your top priority here.
Ideal Sizes: 12-inch, 18-inch, and 24-inch capacities.
Success Criteria: You need clamps that navigate easily inside tight cabinet carcasses. Heavy steel bars on oversized clamps will completely unbalance a small drawer. The weight of a 36-inch clamp can easily tip a lightweight drawer assembly over, ruining squareness while the glue sets. Keep sizes manageable.
Detailed work requires a delicate touch. You are securing edge banding, small moldings, or intricate box joints.
Ideal Sizes: 4-inch to 8-inch capacities.
Success Criteria: You need low-profile, lightweight tools. Heavy clamps will crush delicate edge banding. They will also mar softwoods easily. Small capacities offer better tactile feedback. You can feel the joint closing without applying excessive crushing force.
Throat depth changes everything about how a clamp transfers power. Choosing the wrong depth leads to frustrating glue failures. You must understand how force travels from the jaw to the wood.
Most basic woodworking clamps feature a standard throat. They represent the backbone of daily shop operations.
Best for: Standard edge-to-edge glue-ups and attaching thin face frames.
Benefit: A short throat keeps clamping pressure directly in line with the steel bar. This alignment minimizes steel deflection. It maximizes the PSI delivered to the joint. The energy transfers efficiently from the handle directly to the glue line. Your joints close tightly and evenly across the entire edge.
Sometimes you must reach past an obstacle. Standard throats simply cannot reach the center of a wide board.
Best for: Reaching past wide face frames, securing inset cabinet shelves, or applying isolated pressure to the center of a wide panel.
Implementation Risk: Deep-throat F-clamps suffer from a serious mechanical disadvantage. Heavy clamping pressure causes the jaws to toe-in. The steel bar bends under tension. When the bar bows, the jaws angle inwards. This focuses all pressure on the outer edges of the wood. It dents the surface and pinches the joint tight at the edge while starving the interior of glue. Use deep throats carefully, applying only the necessary pressure.
Comparison of F-Clamp Throat Depths
Feature | Standard Throat (2.5" - 3") | Deep Throat (4" - 5"+) |
|---|---|---|
Best Application | Edge-to-edge joints, basic panels | Inset shelves, reaching past obstacles |
Pressure Delivery | High PSI, direct linear force | Moderate PSI, offset force |
Deflection Risk | Very Low | High (Risk of toe-in) |
Maneuverability | Excellent in tight spaces | Bulky, prone to tipping parts |
Beyond dimensions, the tightening mechanism defines shop efficiency. You will encounter two main styles. Each serves a distinct purpose during assembly.
These models utilize a sliding arm mechanism. A clutch plate locks onto the steel bar when you apply pressure. They are built for modern shop speed.
Use Case: They excel at one-handed operation. You can hold a shelf perfectly steady with your left hand while tightening the clamp with your right hand. They rapidly secure parts before the glue tacks up. This speed saves complex assemblies from disaster.
Limitations: A quick acting F clamp generates significantly lower maximum clamping force. The clutch mechanism slips before reaching extreme pressures. They often prove insufficient for pulling warped boards flat or closing stubborn joinery gaps.
These classic tools use a wooden or plastic handle turning an ACME-threaded screw. They are the traditional workhorses of furniture making.
Use Case: They apply massive, sustained torque. You need this power to close tight mortise and tenon joints perfectly. They also excel at flattening stubborn panel seams. The mechanical advantage of the screw thread crushes gaps seamlessly.
Limitations: Operation requires two hands. One hand holds the clamp body while the other cranks the handle. They take more time to adjust on the fly. This slower operation can eat into your valuable glue open-time during complex, multi-part assemblies.
Building a clamping arsenal requires strategy. Buying randomly leads to unused tools collecting shop dust. You must allocate your budget efficiently.
Woodworking requires balanced pressure. You never use a single clamp on a joint. Buying in pairs is mandatory. Buying in sets of four is ideal. Uneven clamping twists assemblies out of square. Always balance your forces across the workpiece.
Start your collection with these specific configurations to maximize your return on investment:
4x 6-inch clamps: Choose standard throats. These lightweight tools handle delicate boxes, trim work, and quick hold-downs.
6x 12-inch clamps: These are the true shop workhorses. Choose standard throats and traditional threaded screws. They handle drawer boxes, small cabinets, and chair repairs effortlessly.
4x 24-inch clamps: These serve as medium-duty tools. They tackle small cutting boards and standard casework assemblies.
Resist the urge to buy massive F-clamps right away. Avoid 36-inch or 48-inch F-clamps as your first purchase. Extreme lengths make F-style bars unstable. The long steel bars flex too much under pressure. For spans exceeding 24 inches, you should invest in parallel clamps or heavy-duty pipe clamps. They offer far superior stability and pressure distribution across wide tabletops.
Selecting the right clamping tools directly determines the success of your joints. You must carefully evaluate your primary projects before spending your budget.
Balance workpiece capacity against maneuverability to prevent parts from tipping over during assembly.
Respect the risk of bar deflection; deep throats require a gentle touch to avoid denting the wood.
Start your core collection with 12-inch traditional screw models for reliable, heavy pressure.
Supplement your shop with 6-inch quick-acting models for vital speed during complex gluing tasks.
A: Using oversized clamps creates severe weight and balance issues. Long, heavy steel bars sticking out from small workpieces act as levers. They will cause your parts to tip over or skew the joint entirely during the glue-up. Always match the tool length to the project size.
A: You must consider the "cone of pressure" concept. Clamping force radiates outward from the pad at a 45-degree angle. The rule of thumb dictates spacing them every 6 to 8 inches. You should also alternate clamps between the top and bottom of the panel to prevent bowing.
A: Metal jaws easily crush soft wood fibers. You should size up your capacity slightly to allow room for clamping cauls. Cauls are simple scrap wood blocks placed between the tool and your project. Alternatively, select models equipped with non-marring, replaceable rubber pads.
