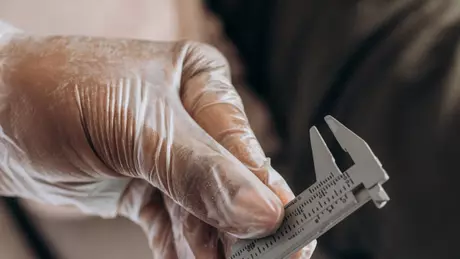

How to Read a Vernier Caliper in Inches and Millimeters

You can use a vernier caliper to measure in inches or millimeters. First, check the calibration of your vernier caliper to make sure it is accurate. Proper calibration ensures your vernier caliper provides correct measurements. The main scale on the vernier caliper gives you the first part of the measurement, while the vernier scale helps you find the exact value. Many people use a vernier caliper in school for science experiments. In factories, a vernier caliper is used to check if parts are the correct size. You can also use a vernier caliper to measure wood, metal, or dental tools.

Practicing will help you get better at using a vernier caliper quickly.

Key Takeaways

• Always check the zero reading before you measure. This helps make sure your vernier caliper is correct. It also helps you avoid mistakes.

• Learn the parts of the caliper. These are jaws, main scale, vernier scale, and depth rod. Knowing these helps you use it the right way. You will get accurate measurements.

• Read measurements by using both the main scale and the vernier scale. Add them together for the exact result. You can get the answer in millimeters or inches.

• Keep your caliper clean and in good shape. Wipe it often and store it in a safe place. This keeps it working well and lasting longer.

• Do not make common mistakes like squeezing too hard. Also, do not let the caliper get misaligned. Avoid parallax error by looking straight at the scale. Handle the caliper gently and read it the right way.

Vernier Caliper Parts

A vernier caliper has many parts. Each part helps you measure things well. You should learn these parts before you use the tool.

Jaws and Depth Rod

There are two sets of jaws on a vernier caliper. The big jaws measure the outside of things, like width or diameter. The small jaws measure the inside of holes or tubes. Both jaws fit tight and stay flat. This helps you get exact results. The jaws are strong because they use hardened steel. This keeps them from bending or wearing out, even after lots of use.

The depth rod is at the end of the caliper. You use it to check how deep a hole or groove is. Move the main scale, and the rod comes out. Put the caliper flat on the surface. Then, push the rod down until it touches the bottom. This way, you get a correct depth reading.

Tip: Always close the jaws softly. Lock the jaws before you read the number. This helps you avoid mistakes.

Main Scale

The main scale goes along the caliper's body. It looks like a ruler. Most calipers show both millimeters and inches. The main scale gives you the first part of your number.

The main scale is tough and lasts long. It is the base for all your measurements.

Vernier Scale

The vernier scale moves along the main scale. It helps you read smaller numbers the main scale can't show. Only one line on the vernier scale matches a line on the main scale at a time. This lets you measure tiny differences, like 0.02 mm or 0.001 inch. You add the main scale and vernier scale numbers for your answer.

The vernier scale makes your measurement more exact. It shows details a normal ruler can't see.

Calibration and Preparation

Before you start measuring, you need to make sure your vernier caliper gives accurate results. Calibration and preparation help you avoid mistakes and keep your tool in top shape.

Zero Check

You should always check the zero reading before you measure anything. Close the jaws of the caliper completely. Make sure they are clean and free from dust or debris. Look at the zero mark on the vernier scale. It should line up exactly with the zero on the main scale. If you use a digital caliper, press the zero button after closing the jaws. For a dial caliper, turn the dial until the pointer sits at zero. This step is important because any error here will affect every measurement you take. Regular zero checks help you keep your measurements precise.

Tip: Always check the zero before each use. This habit helps you catch errors early.

Cleaning the Caliper

Clean tools give you better results. Dirt or oil on the jaws can change your readings. You can follow these steps to keep your caliper clean:

1. Use a soft brush or compressed air to remove dust and loose particles.

2. Wipe the jaws, depth rod, and metal surfaces with a lint-free cloth. You can moisten the cloth with isopropyl alcohol or a mild cleaner. Avoid letting liquid get inside the sliding parts.

3. Clean the engraved scales gently with a soft cloth.

4. Dry all parts with a clean, dry cloth.

5. Apply a thin layer of machine oil to the sliding surfaces. Wipe off any extra oil.

Store your caliper in its case when you finish. Keep the jaws closed to protect them. Clean your tool after every use to prevent rust and damage.

Note: Never use abrasive materials. They can scratch the measuring faces and ruin accuracy.

Reading the Scales

Metric (Millimeters)

You can read a metric vernier caliper by following these steps:

1. Read the Main Scale
   Look at the main scale. Find the last whole millimeter mark to the left of the zero on the vernier scale. This number gives you the main part of your measurement.

2. Find the Vernier Scale Reading
   Check the vernier scale. Find the line on the vernier scale that lines up exactly with any line on the main scale. Each line on the vernier scale usually equals 0.02 mm. Multiply the number of this line by the least count (0.02 mm) to get the extra fraction.

3. Add the Two Readings
   Add the main scale reading and the vernier scale reading. This gives you the total measurement in millimeters.

Example:
Main scale shows 21 mm. The 7th line on the vernier scale lines up with a main scale line.
Vernier reading: 7 × 0.02 mm = 0.14 mm
Total: 21 mm + 0.14 mm = 21.14 mm

Table: Step-by-Step Metric Reading

Least Count and Accuracy
The least count is the smallest value you can measure. Most metric vernier calipers have a least count of 0.02 mm. This means you can measure as small as 0.02 mm. Digital calipers can show even smaller steps, like 0.01 mm. The least count sets the limit for how exact your measurement can be. If you want high accuracy, always check the least count before you start.

Imperial (Inches)

You can also use a vernier caliper to measure in inches. The steps are similar to the metric system, but the scale divisions are different.

1. Read the Main Scale
   Look at the main scale in inches. Find the last whole inch or fraction (like 1/16 inch) to the left of the zero on the vernier scale.

2. Find the Vernier Scale Reading
   Look for the line on the vernier scale that matches up with a line on the main scale. Each line on the vernier scale often equals 0.001 inch. Multiply the number of this line by the least count (0.001 inch) to get the extra part.

3. Add the Two Readings
   Add the main scale reading and the vernier scale reading. This gives you the total measurement in inches.

Example:
Main scale shows 1.125 inches (1 1/8 inch). The 4th line on the vernier scale lines up.
Vernier reading: 4 × 0.001 inch = 0.004 inch
Total: 1.125 inch + 0.004 inch = 1.129 inch

Table: Step-by-Step Imperial Reading

Tip:
Always check the least count on your caliper. Most imperial vernier calipers have a least count of 0.001 inch. This tells you the smallest change you can measure.

Remember: The least count controls how exact your measurement is. If you want the best results, use a caliper with a small least count and always check for zero error before you start.

Using a Vernier Caliper

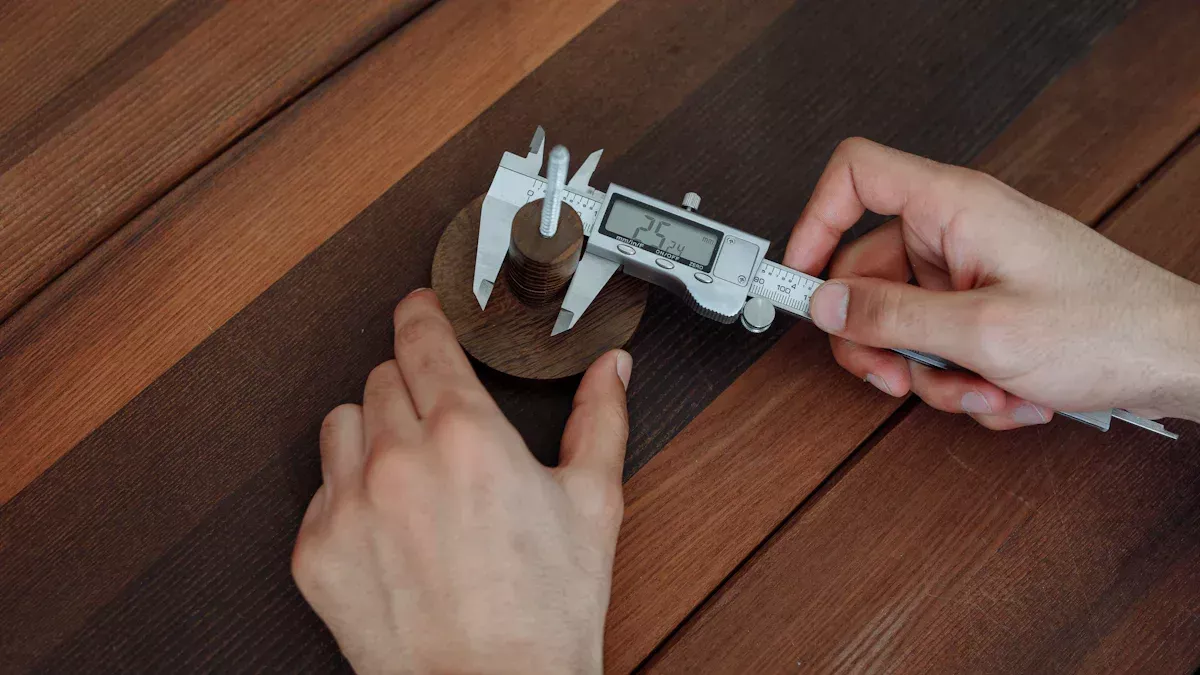

External Measurement

You can measure the outside size of an object using the large jaws of the vernier caliper. Follow these steps for accurate results:

1. Clean the jaws and the object. Dirt or burrs can change your reading.

2. Close the jaws and check for zero. This step helps you avoid errors.

3. Open the large jaws. Place them around the object.

4. Slide the jaws until they touch the object gently. Do not squeeze too hard.

5. Make sure the caliper sits straight and square to the part.

6. Lock the jaws if your caliper has a locking screw.

7. Read the measurement from the scale.

Tip: Avoid using the very tips of the jaws. They can bend or give less accurate results.

Common Mistakes Table

Internal Measurement

You can use the smaller jaws at the top to measure inside spaces, like holes or slots.

• Insert the small jaws into the opening.

• Open the jaws until they touch both inside surfaces.

• Keep the caliper straight. Do not tilt it.

• Move the caliper slightly to find the widest point.

• Lock the jaws if needed.

• Read the value from the scale.

Note: Always keep the jaws clean. Even a small piece of dirt can change your result.

Quick Checklist for Internal Measurement

• Use the upper jaws.

• Zero the caliper before starting.

• Hold the caliper flat against the surfaces.

• Lock the reading if possible.

Depth Measurement

You can measure how deep a hole or slot is using the depth rod at the end of the caliper.

1. Clean the depth rod and the surface.

2. Zero the caliper by closing the jaws.

3. Place the end of the caliper flat on the top of the hole.

4. Extend the depth rod until it touches the bottom.

5. Keep the caliper straight and steady.

6. Read the measurement from the scale.

Tip: Hold the caliper steady and parallel to the hole for the best accuracy.

Best Practices Table

Keep the caliper and object at room temperature. Heat can change the size and affect your measurement.

Tips and Common Errors

Parallax Error

Parallax error happens when your eye does not line up straight with the scale. This mistake can make your measurement wrong. You can avoid parallax error by following these tips:

• Always look at the scale straight on. Keep your eye level with the numbers.

• Train yourself to check the scale from a perpendicular angle.

• Try digital calipers if you want to reduce this error. Digital displays do not have parallax problems.

Tip: Parallax error is common. Take your time and double-check your view before reading the scale.

Zero Error

Zero error appears when the zero marks on the main and vernier scales do not match after you close the jaws. This problem can give you a wrong result every time. Zero error can be positive or negative. If the vernier zero sits to the right of the main scale zero, you have a positive error. If it sits to the left, you have a negative error. To fix this, add or subtract the zero error value from your measurement. For example, if you find a zero error of -0.03 cm, add this to your reading. Always check for zero error before you start. This step helps you get true measurements.

Recording Results

You can improve your accuracy by recording your results carefully. Follow these steps for best results:

1. Calibrate your tool daily using certified gauge blocks. Keep a record of each calibration.

2. Use a stable table to avoid shaking during measurement.

3. Hold the jaws square to the object. Use gentle, even force.

4. Take five measurements for each part. Release the jaws between each try.

5. Write down the average and the spread of your results.

6. Let one trained person do all the measuring for a project.

7. Keep the room at a steady temperature and humidity.

8. Check the surface of your object for roughness.

9. Record every step and keep your notes safe.

You can also use digital calipers to log data automatically. This method helps you avoid mistakes and keeps your records ready for checks or audits.

Note: Careful records help you find mistakes and improve your work over time.

Conclusion

You can get good at measuring if you follow these steps:

• Always check for zero error before you start.

• Put the object between the jaws and hold it tight.

• Look at the main scale at the zero spot.

• Find which vernier scale line matches up for the small part.

• Add both numbers to get your answer.

If you calibrate and read carefully, your measurements will stay correct for a long time.

Use practice sheets or watch online videos to help you get better and more sure about your measuring skills.

FAQ

How do you know if your vernier caliper is accurate?

You can check accuracy by closing the jaws and making sure the zero lines match. If they do not, you may have a zero error. Always check before you measure anything.

What does "least count" mean on a vernier caliper?

Least count tells you the smallest value you can measure. For most metric calipers, it is 0.02 mm. For imperial calipers, it is 0.001 inch. You find it on the scale or in the manual.

Can you use a vernier caliper to measure round objects?

Yes, you can measure round objects like pipes or rods. Place the jaws around the widest part. Hold the caliper straight. Read the scale as usual.

Tip: Rotate the object and measure again. This helps you find the true diameter.

Why do you need to clean your caliper before measuring?

Dirt or oil on the jaws can change your results. Clean jaws give you the best accuracy. Use a soft cloth or brush to wipe away dust and oil.

• Clean before each use.

• Store your caliper in its case.
