Views: 251 Author: Site Editor Publish Time: 2026-03-09 Origin: Site
Mastering the use of a Hand Riveter is a fundamental skill for anyone involved in metalworking, automotive repair, or heavy-duty DIY projects. This tool allows you to join two pieces of material—usually metal sheets—permanently when you only have access to one side of the workpiece. Unlike screws or bolts that might loosen over time due to vibration, a rivet creates a solid, vibration-resistant bond.
To an expert, the Professional Hand Riveter is more than a simple squeezer; it is a precision instrument. Using it correctly prevents material deformation and ensures the structural integrity of your assembly. Whether you are using a Compact model for tight spaces or a Heavy duty version for thicker plates, following the right technical steps is crucial. In this guide, we will walk through the professional process of preparing, setting, and finishing a rivet joint with ease.
Before you squeeze the handles, you must understand how the tool works. A Professional Hand Riveter functions by pulling a mandrel through a hollow rivet body. This action expands the tail of the rivet, locking the materials together. Once the tension reaches its limit, the mandrel snaps off, leaving a clean, permanent head.

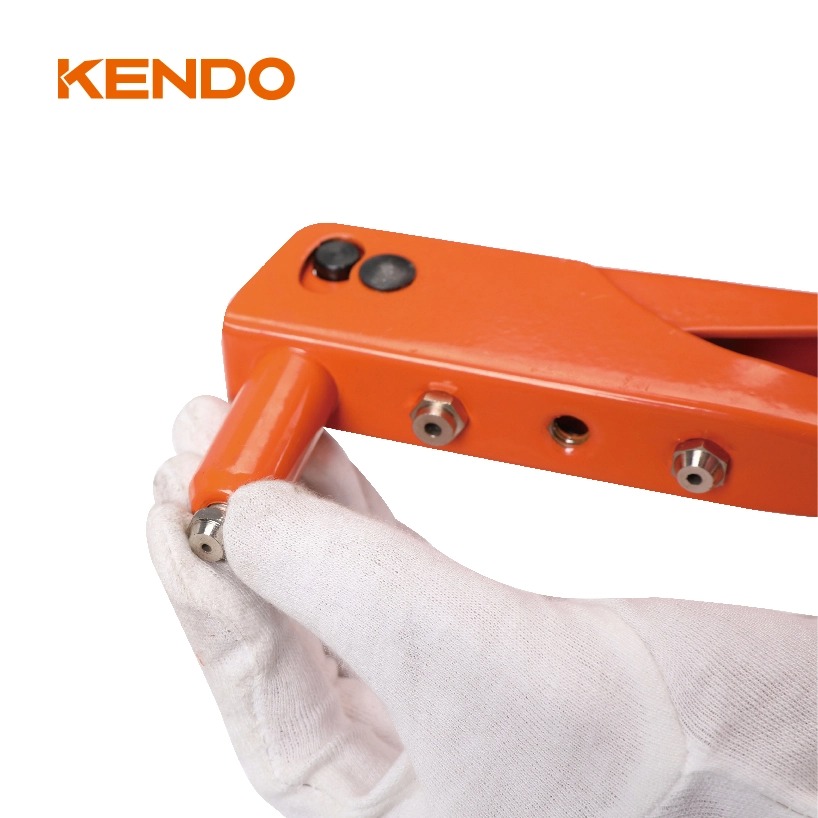

Most modern tools come with a Multi nosepiece system. These interchangeable tips allow you to work with different rivet diameters, typically ranging from 2.4mm to 4.8mm. Inside the head, a set of hardened steel jaws grips the mandrel. If you use a Heavy duty tool, these jaws are often reinforced to prevent slipping. Keeping these internal parts clean is the secret to a tool that lasts for decades. If you notice the mandrel isn't releasing properly, it usually means the internal jaws need a drop of light machine oil.
Success begins with hardware selection. A common mistake is using a rivet that is too long or too short for the material thickness. This "grip range" is vital. If the rivet is too short, the tail won't expand enough to hold the sheets. If it is too long, the joint will be loose and wobbly.
Your Hand Riveter usually stores its Multi nosepiece options on the handle or the head. You must select the tip that matches the diameter of the rivet mandrel exactly. If the hole in the nosepiece is too large, the mandrel may tilt or jam the tool. If it is too small, the mandrel simply won't fit.
Always match the rivet material to your workpiece to avoid galvanic corrosion. For example, use aluminum rivets for aluminum sheets and stainless steel rivets for Heavy duty steel applications. A Professional tip: if you are working with soft materials like plastic or leather, use a backup washer on the "blind" side to prevent the rivet from pulling through the material.
| Rivet Diameter | Typical Nosepiece Size | Best Application |
| 2.4mm (3/32") | Smallest | Lightweight electronics, thin trim |
| 3.2mm (1/8") | Medium-Small | HVAC ductwork, signage |
| 4.0mm (5/32") | Medium-Large | Automotive body panels |
| 4.8mm (3/16") | Largest | Heavy duty structural frames |
A Hand Riveter can only do its job if the hole is prepared correctly. Accuracy at this stage prevents the "spinning rivet" syndrome, where the fastener fails to grip the sides of the hole.
Use a sharp drill bit that is slightly larger (about 0.1mm) than the rivet body diameter. For a standard 3.2mm rivet, a #30 drill bit is often preferred by professionals. Ensure the two pieces of material are clamped tightly together before drilling. Any gap between the sheets will lead to a weak joint, as the rivet might expand between the layers instead of behind them.
After drilling, always remove the metal burrs from around the hole. A Compact deburring tool or a larger drill bit turned by hand works perfectly. This ensures the head of the rivet sits perfectly flush against the surface. When using an Adjustable clamping system, double-check that the holes are perfectly aligned. If you have to force the rivet in, the hole is either too small or the alignment is off.
Now that the prep work is done, it is time to use the Hand Riveter. The goal is a smooth, one-handed or two-handed operation that results in a clean "pop."
Open the handles of your Hand Riveter completely. Insert the long, thin mandrel of the rivet into the Multi nosepiece. The wider body of the rivet should be facing away from the tool. Push it in until the head of the rivet body is resting against the nosepiece.
Insert the rivet body into the pre-drilled hole. It is critical to keep the tool at a 90-degree angle to the workpiece. Apply firm downward pressure so the rivet head is pressed tight against the material. If you tilt the tool, the rivet will set crookedly, and the mandrel might snap prematurely.
Squeeze the handles together firmly. You will feel resistance as the tool pulls the mandrel. For thicker materials or larger rivets, you might need to release the handles, push the tool further down the mandrel, and squeeze a second time. This is where an Adjustable handle design helps by providing better leverage. Continue until you hear a sharp "pop." This sound indicates the mandrel has snapped, and the joint is complete.
Even with a Professional Hand Riveter, things can sometimes go wrong. Most issues are related to improper tool maintenance or incorrect technique.
If the snapped mandrel stays inside the tool, don't panic. This usually happens because the handles weren't opened wide enough to release the jaws. Open the handles fully and point the nose of the tool upward; the mandrel should fall out of the back. If it is still stuck, you may need to unscrew the nosepiece to clear the jam.
A loose rivet usually means the hole was drilled too large or the material thickness exceeded the rivet's grip range. In this case, you must drill out the failed rivet using a bit of the same size and replace it with a larger diameter rivet or a longer version. A Heavy duty joint should never have any movement when finished.
The internal jaws of a Hand Riveter accumulate metal shavings and dust over time. Every few hundred rivets, unscrew the head sleeve and clean the two or three jaw pieces with a wire brush. This ensures they continue to grip the mandrels without slipping.
Apply a small amount of grease to the pivot pin of the handles. This reduces friction and makes the tool feel much lighter during use. For Professional users who perform hundreds of cycles a day, proper lubrication prevents hand fatigue and extends the life of the tool's mechanical linkages.
Once you know how to use a Hand Riveter for basic tasks, you can tackle more complex scenarios. These expert insights help you get the most out of your Adjustable and Compact tools.
When you can't fit a standard tool into a corner, look for a Compact Hand Riveter with a 360-degree swivel head. This allows you to orient the handles in any direction while keeping the nosepiece perpendicular to the hole. If you don't have a swivel head, try pre-loading the rivet and inserting it into the hole at an angle before straightening the tool to squeeze.
If you are riveting into fiberglass or thin plastic, the force of a Heavy duty rivet can crack the material. To prevent this, use "Exploding" or "Peel" rivets. These are designed to split into four legs on the back side, spreading the pressure over a much wider area. Alternatively, always use a stainless steel washer on the back to provide a solid surface for the rivet tail to expand against.
While a Hand Riveter isn't as dangerous as a power saw, it still requires safety awareness. The "pop" of a mandrel releases a significant amount of kinetic energy.
Eye Protection: Always wear safety glasses. When the mandrel snaps, it can sometimes fly out of the tool with force, or small metal shards can splinter from the rivet head.
Finger Placement: Keep your fingers away from the pivot points and the area between the handles. A Heavy duty tool can exert enough force to cause a painful pinch.
Mandrel Collection: Never leave snapped mandrels on the floor. They are sharp and can easily puncture tires or thin-soled shoes. Many Professional tools now come with a detachable collection bottle to catch the waste automatically.
Choosing the right tool depends on the volume of work and the materials you handle.
| Tool Type | Best For | Key Feature |
| Standard DIY | Occasional home repairs | Lightweight, affordable |
| Compact Swivel | Tight corners, HVAC work | 360-degree head rotation |
| Heavy Duty Two-Handed | 4.8mm+ steel rivets | Long handles for max leverage |
| Professional Lazy Tong | High-volume production | Scissor-action for effortless popping |
If you are a professional, investing in a tool with Adjustable tension and a Multi nosepiece stored on-board will save you hours of downtime looking for parts.
A Hand Riveter is an indispensable tool for creating permanent, high-strength connections. By selecting the right rivet size, preparing your holes with precision, and maintaining your tool's internal jaws, you can achieve professional results on every project. Remember to always keep the tool perpendicular to your work and open the handles fully to clear the mandrel after every "pop." With these techniques, your Heavy duty assemblies will stand the test of time.
Q: Can I use a Hand Riveter on wood?
A: Yes, but you must use a backup washer on the back side. Without a washer, the rivet will simply pull through the soft wood fibers instead of clamping them.
Q: Why did my mandrel snap before the rivet was tight?
A: This usually happens if the tool was tilted during the squeeze or if the nosepiece was the wrong size. Ensure the head is flush against the material and you are using the correct Multi nosepiece.
Q: How do I remove a rivet if I made a mistake?
A: Take a drill bit the same size as the rivet body and drill straight through the center of the rivet head. The head will pop off, and you can use a punch to tap the remaining body out of the hole.
